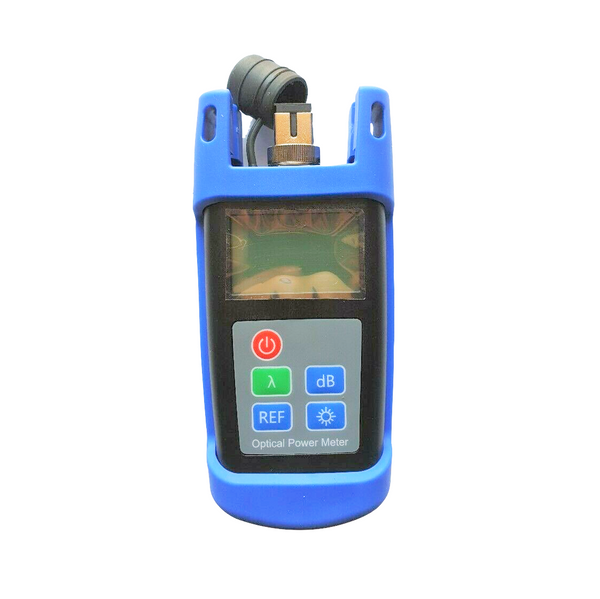

Mini Optical Power Meter

Mini Optical Power Meter

$159.00

Tax included.

Overview:

Our compact Power Meters provides highly accurate power measurements, as well as reference value

setting capabilities. What’s more, this convenient unit requires no offset nulling, and it offers power autonomy of 55 hours, for reliable, long-lasting performance in the field.

Features:

  •  Pocket size design
  •  Highly accurate unit offering 6 calibrated wavelengths
  •  Interchangeable connectors
  •  Durable and reliable design
  •  Easy-to-use interface for error-free testing
  •  Rubber armor protection
  •  Flashlight function for night working

Specifications:

Wavelength(nm) 800~1700nm
Measurement Range -70+3dBm / -50~+26dBm
Optical Connector FC+SC+ 2.5mm universal
Power Supply Alkaline Battery(2 AAA 1.5V batteries)
Display Units dB / dBm / w
Resolution (dB) 0.01
Dimensions / Weight 130x65x35mm / 180g



Standard Accesories:

Item Quantity
User guide 1
Certificate of Qualified 1
FC Connectors 1
SC Connectors 1
Gurantee card 1
Soft carry bag 1
